ATI-FIRE Firefighter Halligan Bar Multi‑Function Forcible Entry Rescue Pry Bar

Model No. Available Length

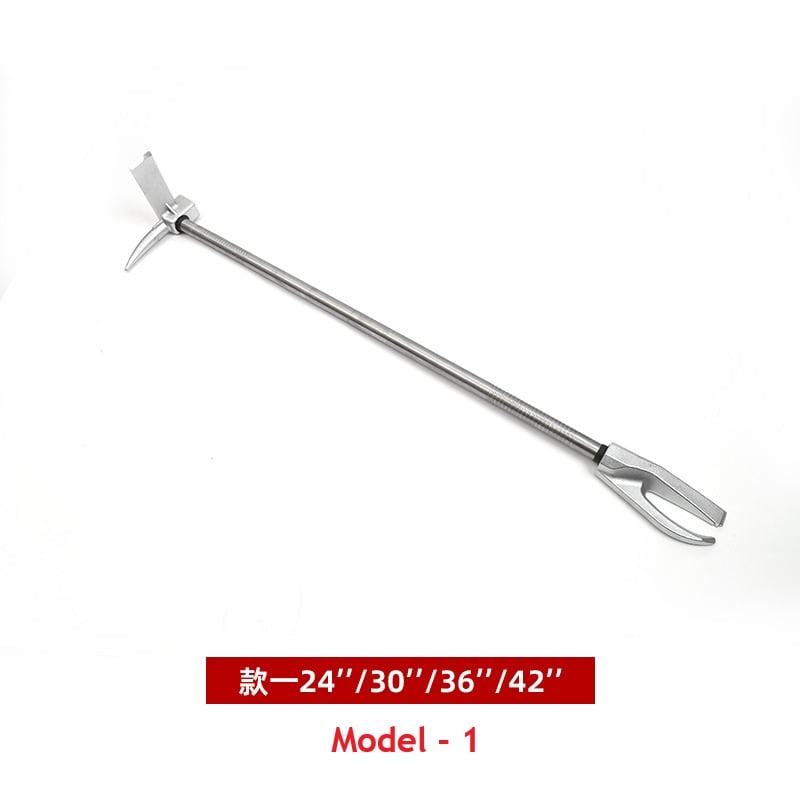

Model‑1 24 inch / 30 inch / 36 inch / 42 inch

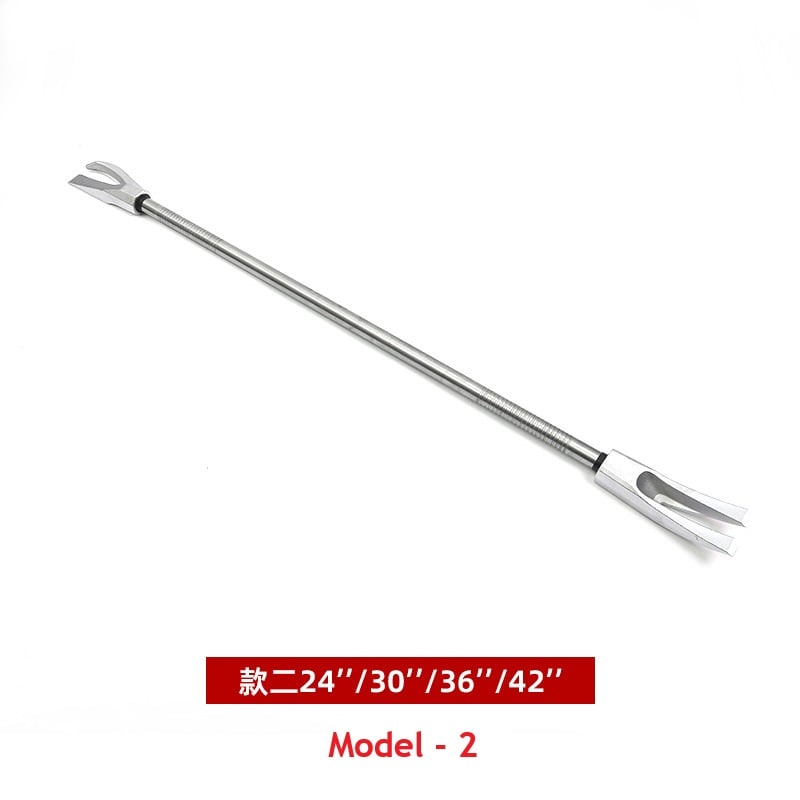

Model‑2 24 inch / 30 inch / 36 inch / 42 inch

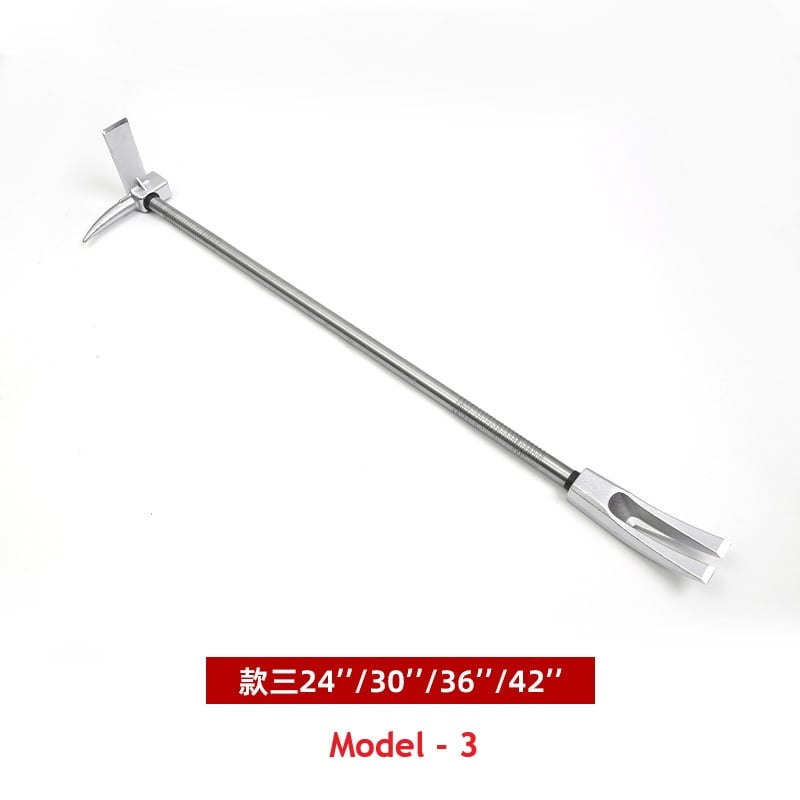

Model‑3 24 inch / 30 inch / 36 inch / 42 inch
  • Description
  • Specifications
  • Applications
  • Advantages
  • Related Products
Description

This halligan bar integrates multiple demolition functions of prying, twisting, chiseling, chopping and tearing. It supports single‑person operation. Made of stainless‑steel handle and 40Cr steel working end with high hardness and mechanical strength, suitable for fire department and emergency rescue teams.


Specifications
Item Specification
Material Handle: Stainless Steel; Working Ends: 40Cr Steel
Hardness ≥45 HRC
Weight ≤5.4 kg
Length 24 / 30 / 36 / 42 inch
Lock‑breaking Nail Extractor Width ≥65 mm, Thickness ≤44 mm, Opening Width ≥27 mm
Eagle‑billed / Duckbill Device Duckbill width ≤50 mm, Duckbill height ≤158 mm, Eagle‑billed height ≤172 mm
Rod Handle Test Force ≥ 800 N
Prying Nail Extractor Test Force ≥ 6000 N
Breakthrough Capacity Penetrate Q235 steel plate thickness ≤1.5 mm
Applications
  • Traffic accident vehicle rescue, vehicle forcible entry & extrication
  • Earthquake disaster rescue, debris clearance & structural demolition
  • Firefighting forcible entry: prying doors, windows and locks
  • Emergency accident rescue, multi‑purpose demolition operations
  • Urban search and rescue, technical rescue missions
Advantages
  • Integrated multi-functional head design, combines prying fork, pick and chisel in one single tool, replace multiple separate rescue tools and reduce carrying weight for firefighters.
  • Working ends adopt 40Cr alloy steel with high quenching hardness, strong impact resistance and wear resistance, not easy to deform under heavy prying force.
  • Stainless steel threaded rod body, high tensile strength, anti-corrosion and rust-proof, long service life for harsh fire & rescue field environment.
  • Precision CNC machining for fork and chisel ends, smooth contact surface, less slipping during forcible entry operation.
  • Multiple optional lengths (24/30/36/42 inch) to match different operation scenarios and customer tender requirements.
  • Strict mechanical load testing before delivery, stable performance to meet fire department standard requirements.
  • Simple single-person operation, no extra auxiliary equipment needed, fast response in emergency rescue.
